500~600Mhz FPV Video Transmitter 5 Watt FM Wireless Analog Transmitter and Receiver
VTX Specification:
| Model number: | DS-500TX5W |
| Voltage | DC 12V |
| Current | 1.3A |
| Modulation | FM |
| Frequency | 300Mhz~900Mhz |
| Channels | 8 channels |
| Frequency band (choose one series) | 300Mhz: (300Mhz, 320Mhz, 340Mhz, 360Mhz, 380Mhz, 400Mhz, 420Mhz, 440Mhz) (customization) 400Mhz: (340Mhz,360Mhz, 380Mhz, 400Mhz, 420Mhz ,440Mhz, 460Mhz, 480Mhz) (customization) 500Mhz: (460Mhz, 490Mhz, 500Mhz,520Mhz, 540Mhz, 560Mhz, 580Mhz, 600Mhz) 600Mhz: (580Mhz, 600Mhz, 620Mhz, 640Mhz, 660Mhz, 680Mhz, 700Mhz, 720Mhz) 700Mhz: (680Mhz, 700Mhz, 720Mhz, 740Mhz, 760Mhz, 780Mhz, 800Mhz, 820Mhz) 800Mhz: (780Mhz, 800Mhz, 820Mhz, 840Mhz, 860Mhz, 880Mhz, 900Mhz, 920Mhz) 900Mhz: (880Mhz, 900Mhz, 920Mhz, 940Mhz, 960Mhz, 980Mhz, 1000Mhz, 1020Mhz) |
| Transmit Power | 5 watt (full power) |
| Video Output | 1 Vp-p(FM) |
| Temperature | -10℃ ~ +50℃ |

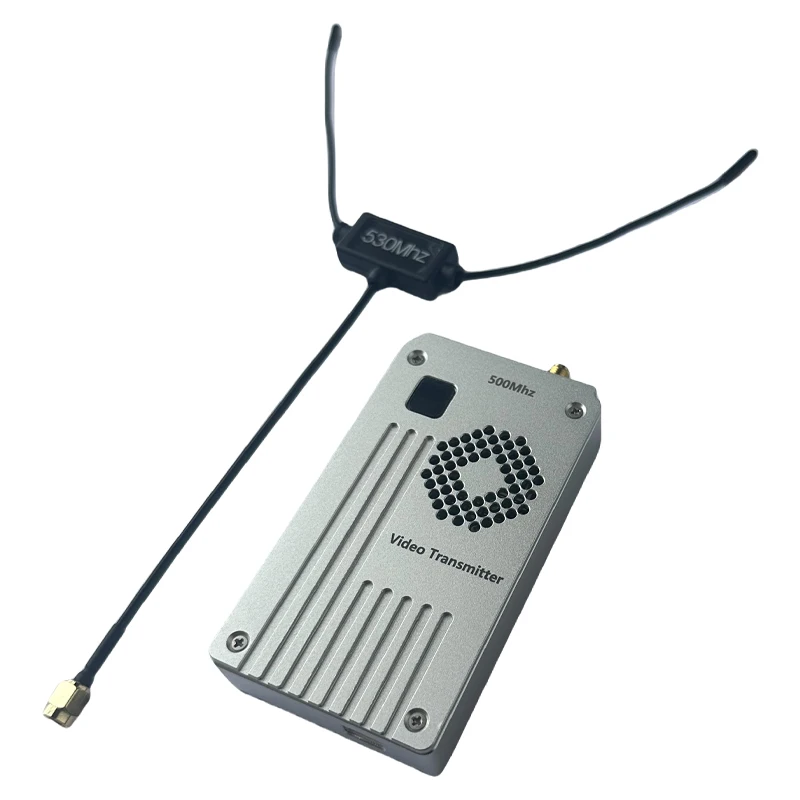

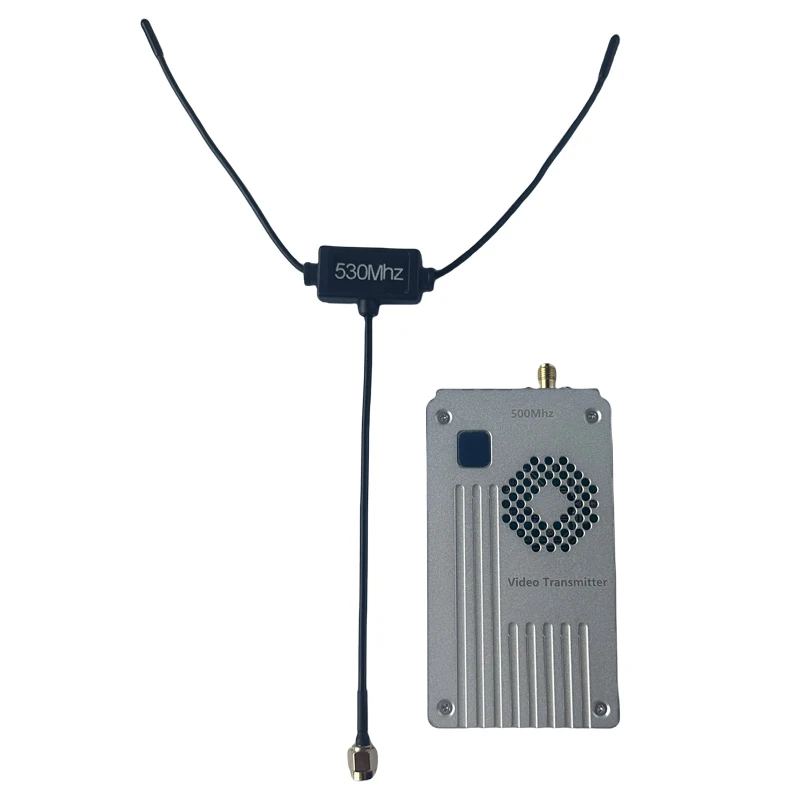

| Antenna port | SMA |
| Transmitter Weight | 70g |

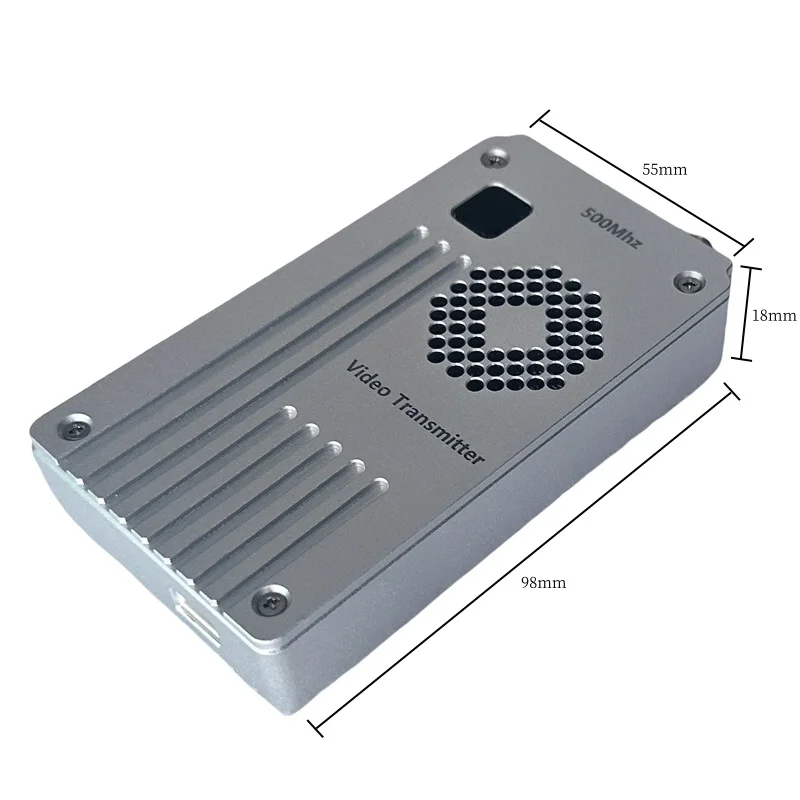

| Dimensions | 98*55*18mm (without antenna) |
VRX Specification:
| Model number: | DS-RX500 |
| Voltage | DC 12V |
| Receiving sensitivity | -85DB |
| Modulation | FM |
| Frequency | 300Mhz~900Mhz |
| Channels | 8 channels |
| Frequency band (choose one series) | 300Mhz: (300Mhz, 320Mhz, 340Mhz, 360Mhz, 380Mhz, 400Mhz, 420Mhz, 440Mhz) (customization) 400Mhz: (340Mhz,360Mhz, 380Mhz, 400Mhz, 420Mhz ,440Mhz, 460Mhz, 480Mhz) (customization) 500Mhz: (460Mhz, 490Mhz, 500Mhz,520Mhz, 540Mhz, 560Mhz, 580Mhz, 600Mhz) 600Mhz: (580Mhz, 600Mhz, 620Mhz, 640Mhz, 660Mhz, 680Mhz, 700Mhz, 720Mhz) 700Mhz: (680Mhz, 700Mhz, 720Mhz, 740Mhz, 760Mhz, 780Mhz, 800Mhz, 820Mhz) 800Mhz: (780Mhz, 800Mhz, 820Mhz, 840Mhz, 860Mhz, 880Mhz, 900Mhz, 920Mhz) 900Mhz: (880Mhz, 900Mhz, 920Mhz, 940Mhz, 960Mhz, 980Mhz, 1000Mhz, 1020Mhz) |
| Video Output | 1 Vp-p(FM) |
| Audio Output | 1 Vp-p(FM) |
| Audio Carrier Ware | 5.5M 6.0M |
| Temperature | -10℃ ~ +50℃ |
| Antenna port | SMA |
| Transmitter Weight | 19g |
| Dimensions (L * W * H) | 75*45*20mm |
Installing:

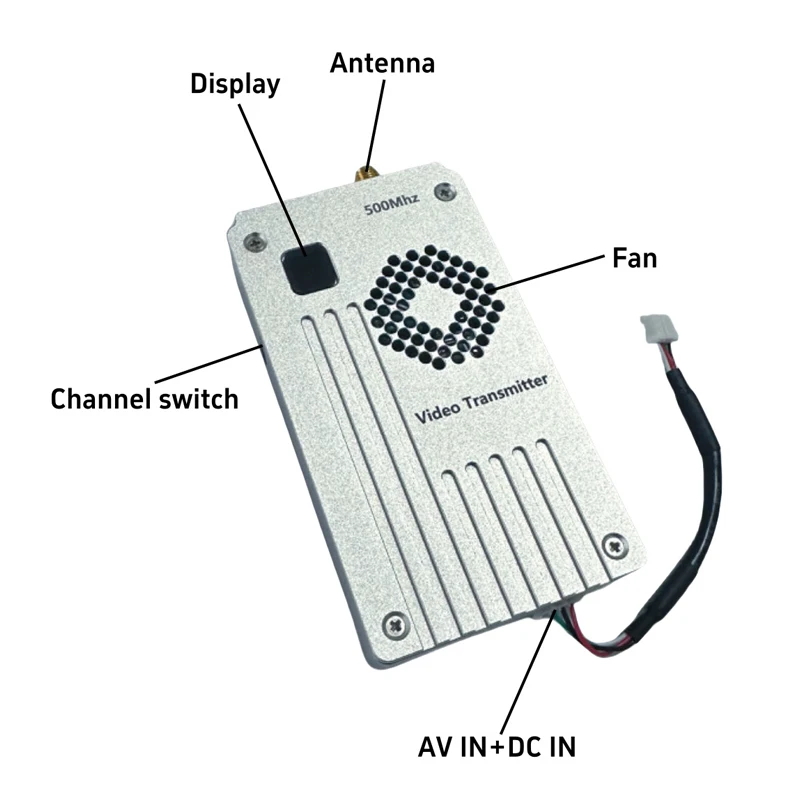

A. The line has 5 plugs for connecting transmitter, camera and power supply
One of the line's points connecting to transmitter, another has 4 plugs (red, yellow, white, black)
Red plug connect DC 12V/1000mA, can also connect battery
White and yellow plug connect to camera's audio and video apart
And black one connects camera's power input jack
B. Push the control button, can change the channel of receiver
Meanwhile, push it and last several seconds, can close the digital play and turn into saving power model
Then push it again, can replay
The function can be able to lock channel, so as to avoid mistaking operation
C. Set the same channel with transmitter and receiver
