COFDM models IP RJ45 interface 50km NLOS video transmitter

Name: COFDM models IP RJ45 interface 50km NLOS video transmitter
Brand: Ding Shen
Price: 1 USD

Quality COFDM models IP RJ45 interface 50km NLOS video transmitter for sale

Brand Name : Ding Shen

Model Number : DS-DH100VCS

Place of Origin : China

MOQ : 1 Set

Price : Negotiation

Payment Terms : T/T

Supply Ability : 1000PCS per month

Delivery Time : 3-7 days

Packaging Details : export standard packing

Compression : H.264/H.265

Frequency range Output : 300MHz--4.4GHz(subdivided)

transmitter reciever : low latency tx rx with multi channels

cofdm ethernet transmitter : cofdm 50km transmitter

Transfer rate : 30 Mbit/s

Output power : 100w

cofdm 4channel transmitter : Cofdm HD 4-CH Mobile Video Receiver

Contact Now

COFDM models IP RJ45 interface 50km NLOS video transmitter

DS-FD100VCS is a new COFDM digital transmitter receiver with Frequency-division duplexing (FDD) technology, designed with dual-mode RF transceiver system which operate at different carrier frequencies ideal for long range communication in network solution. The FDD technique uses different frequency bands for video radio sending and receiving with no interference.

Feature:

* COFDM modulation,different carrier frequencies technology

* Low latency

* great transfer rate for uplink and downlink

* Built in with HDMI, SDI, Ethernet, serial ports

* Dual frequency is ideal for long-distance required

* Dynamic AES encryption 128bits

* Narrowband bandwidth 1M/2M/4M/8MHz available

* Work well in NLOS fast moving condition

* Integrated design, super linear

* User easy to operate the related parameters by LCD panel with keypad

Model	DS-FD100VCS
Working voltage	DC28V/ AC110~240V
Working current	20A_DC28V
Frequency 1	555MHz (300-2500MHz selection)
Frequency 2	595MHz (300-2500MHz selection)
RF bandwidth	1/2/4/8MHz
Output power	100W (50dBm)
Encryption/decryption mode	AES128 bits user-defined password
modulation	COFDM 2K
Transfer rate	2x30 Mbit/s uplink and downlink
RF connector	N *2
Ethernet	Standard RJ45 port *2
Video interface	HDMI, HD-SDI, BNC
Voice speaking	Aviation plug
Serial port	RS232/RS485 serial port
Baud rate	115200bps max
LCD panel with keypad	Easy to set/modify the related parameters
Dimension	undetermined
Weight	undetermined

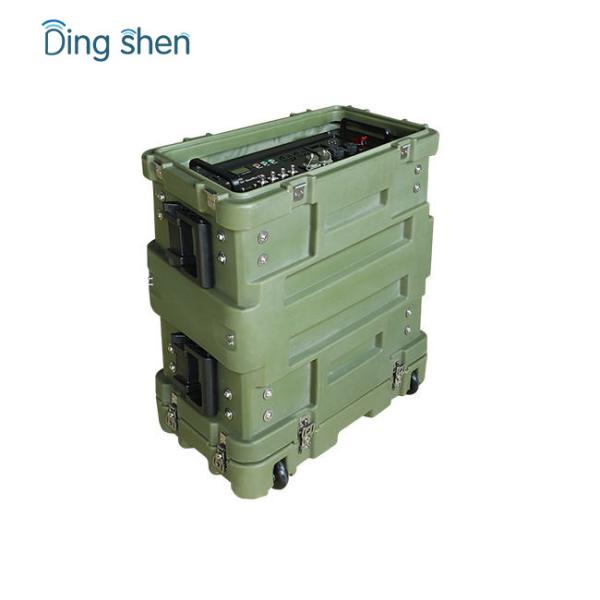

COFDM models IP RJ45 interface 50km NLOS video transmitter Images
